Dissolved Oxygen Sensor With RS485 For Industrial Process Sewage
OPD701 dissolved oxygen sensor adopts the measurement principle of fluorescence method, which has the advantages of high sensitivity, wide measurement range, real-time monitoring and remote monitoring. These characteristics enable the fluorescence sensor to provide accurate and reliable monitoring of dissolved oxygen concentration in the process of industrial sewage treatment, helping to optimize process control and improve treatment effect.
Industrial sewage dissolved oxygen sensor is a sensor used to monitor the concentration of dissolved oxygen in industrial sewage. Industrial effluents often contain a variety of organic and inorganic substances, as well as pollutants that can lead to lower dissolved oxygen concentrations.
Therefore, industrial sewage dissolved oxygen sensors need to have anti-pollution performance, fast response and high precision, corrosion resistance, real-time monitoring and remote communication functions, as well as sustainable operation and easy maintenance to meet the requirements of industrial sewage treatment. Specific industrial wastewater characteristics and treatment needs are selected.
Specification:
| Model | OPD700 | OPD701 |
| Measuring Technology | Luminescence optical measurement |
| Measuring Range | Dissolved oxygen: 0.00~20.00mg/L Saturation: 0~200% Temp: 0~50℃ |
| Resolution | Dissolved oxygen: 0.01mg/L Saturation: 1% Temp: 0.1℃ |
| Accuracy | Dissolved oxygen: ±0.3mg/L Saturation: ±3% Temp: 5~45℃ ±0.5℃ | Dissolved oxygen: ±0.1mg/L Saturation: ±1% Temp: 0~50℃ ±0.2℃ |
| Response Time | T90＜60s |
| Digital Output | RS485, Modbus RTU |
| Related Compensation | Temperature/salinity/pressure compensation |
| Calibration | Zero and span calibration |
| Sample Flow Rate | Not dependent |
| Work Pressure | 0~6Bar |
| Work Temp | 0~50℃ |
| Storage Temp | -10~60℃ |
| Material | Titanium alloy |
| Power Supply | DC 6~12V |
| Consumption | 0.1W |

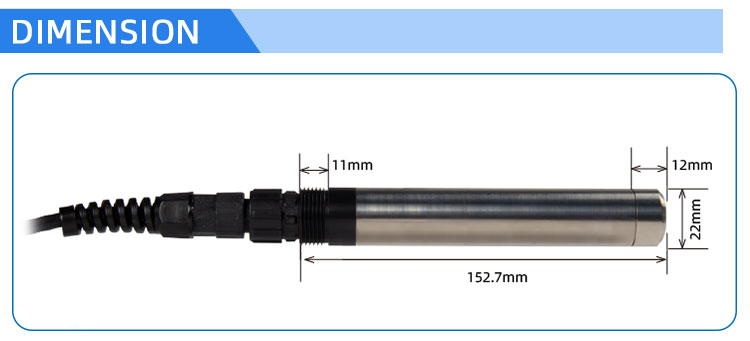

| Dimensions | Diameter: 22mm Length: 160mm |
| Installation | Submersible; Thread specifications: M22*1.5mm |
| Lead Interface | M16 |
| Protection Grade | IP68 |
| Cable | Standard 5 meters (other length can be customized) |
| Weight | 100g |
| Application | Freshwater or seawater aquaculture | Industrial process, sewage |
Brief introduction:
- Adopt optical measurement technology based on Fluorescence principle
- No need to calibrate frequently
- Without consuming oxygen, accurate measurement
- All-in-one package, can be used with the online transmitters, DTU, and portable instruments
- RS485 interface, Modbus RTU, support access to standard industrial control system
- The protection grade is IP68, can work continuously and stably under water for a long time
- Internal storage of calibration data, support offline calibration, plug and play on site
- Support handheld devices and in-situ applications
Application Of The Optical Dissolved Oxygen Sensor
- Urban wastewater treatment
- Industrial effluent treatment
- Surface water monitoring
- Seawater
- Fish farming
- Aquarium
- Drinking water
